In GD&T, free state symbol is a critical concept. This article focuses on free state symbols, deeply explores their definition, symbol placement and annotation rules, the timing of use in CNC machining, the main application areas, and the practical application in CNC programming and testing.
It aims to provide comprehensive and practical references for relevant engineering and technical personnel to accurately control the processing accuracy and quality.
The free-state symbol is the core tool used in GD&T to define the geometric accuracy of parts without external force constraints.
This section will first clarify its definition and technical essence, compare the limitations of traditional tolerance labeling, and combine it with international standards (such as ASME Y14.5, ISO 1101) to analyze the normative basis of symbols.
The free state symbol is a key element in the geometric dimension and tolerance (GD&T) system.
In the processing and testing of parts, this symbol is used to characterize the size and shape tolerance requirements of parts without external force constraints, such as fixture clamping forces, gravitational effects, or handling pressures.
In essence, it reflects the geometric accuracy standards that parts need to achieve in the natural state, and supplements and deepens the traditional tolerance marking in specific application scenarios.
Traditional tolerance labeling mainly focuses on the size and shape requirements of parts in assembly or specific working states, and does not fully consider the free state characteristics of the parts themselves.
The free state symbol focuses on the tolerance control of parts without external constraints, which is very important for thin-walled parts and parts made of flexible materials.
Take the aerospace field as an example, many thin-walled structural parts will be deformed due to the removal of processing stress after processing.
The free state symbol can accurately define their tolerance range in the free state, complement the traditional tolerance labeling, and more comprehensively standardize the geometric accuracy of the parts.
The definition and application of free-state symbols follow the international standard system, such as ASME Y14.5-2018 on Dimensioning and Tolerancing, ISO 1101 Geometrical Product Specifications (GPS) on shape, orientation, position, and runout tolerance labeling.
These standards make detailed provisions on the graphic representation method, technical meaning and engineering drawing labeling rules of free state symbols, ensuring that global machinery manufacturing, aerospace, automobile manufacturing and other industries can achieve accurate understanding of technical requirements and unified norms for the implementation of standards when it comes to free state tolerance requirements.
The normative nature of symbol annotation directly affects the transmission accuracy of technical requirements.
According to ASME and ISO standards, this section will detail the graphic form of the free state symbol (such as the circular logo containing “F”), the marking position in the dimensional tolerance and geometric tolerance (such as after the dimension number, below the tolerance box), and the specific requirements of the drawing annotation (such as the measurement conditions ).

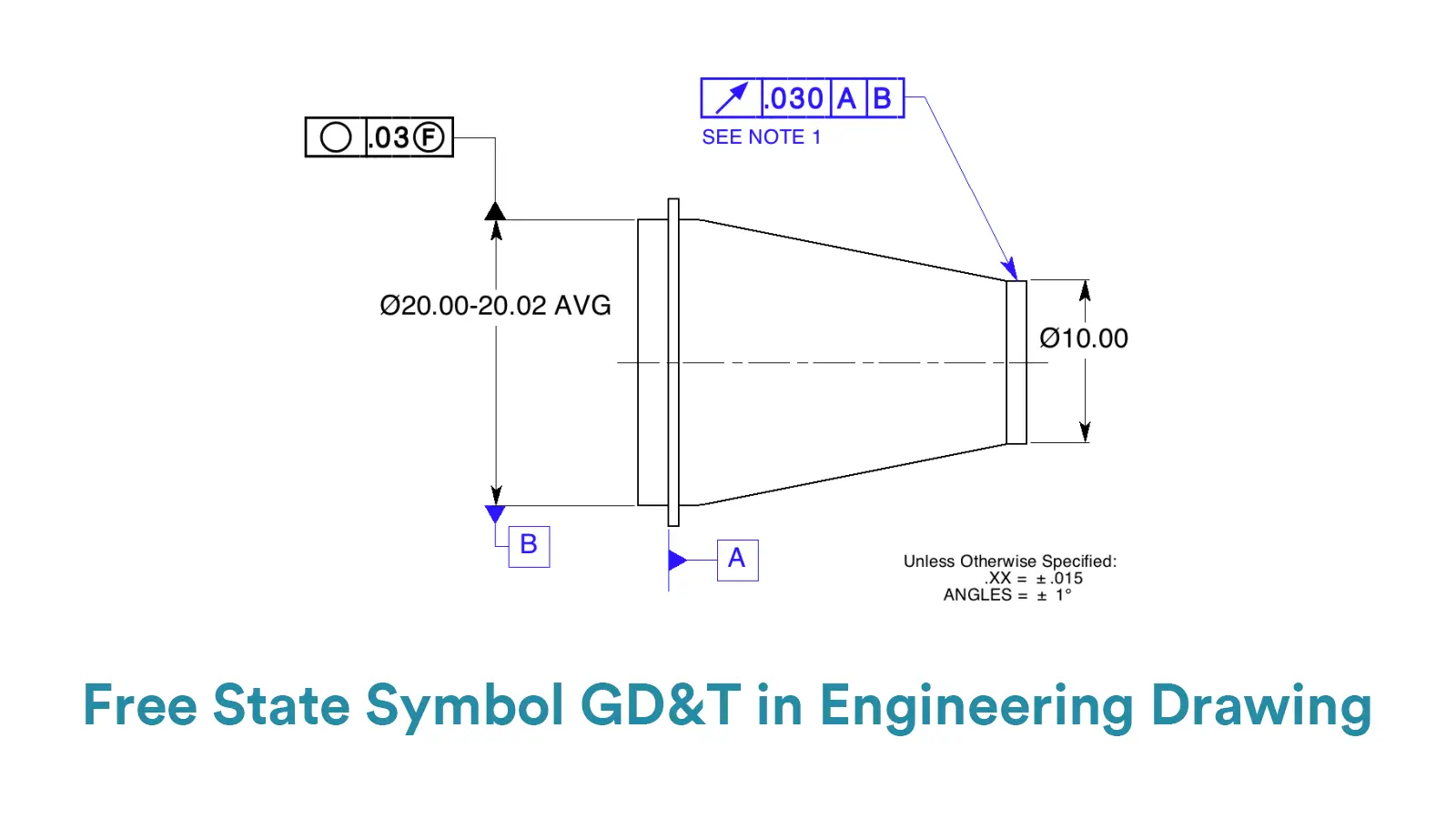

In the ASME standard, the free state symbol is generally a small circle with a specific logo such as the letter “F” inside.
In the ISO standard, there is also a similar graphic logo to indicate the free state. This symbol is usually used with dimensional tolerance marking or geometric tolerance marking to clarify that the tolerance requirement is for the free state of parts.

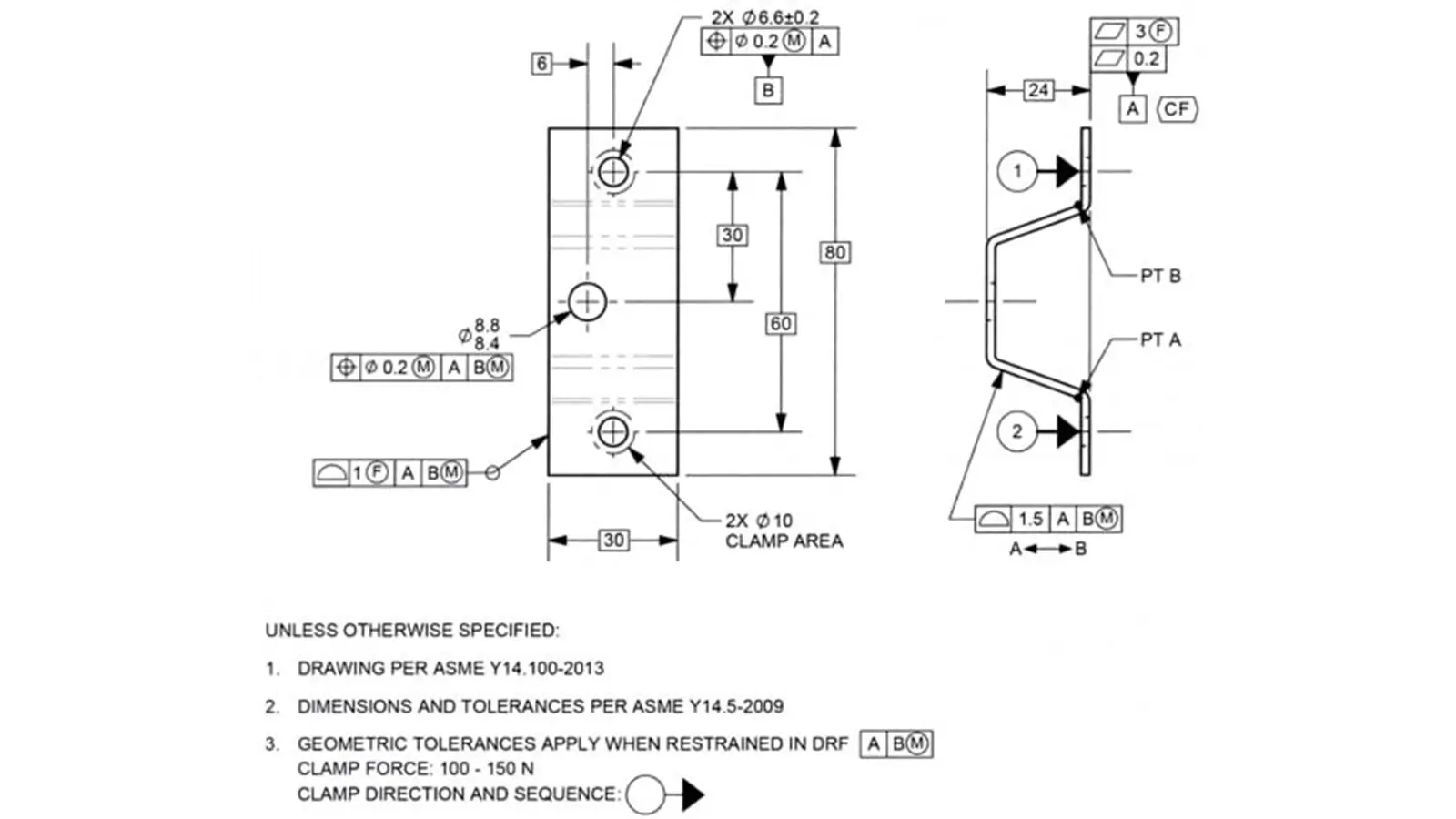

Engineering drawings strictly specify the placement of the free-state symbol: for dimensional tolerances, it must follow the size number.Take the labeling of free-state diameter tolerance as an example; the symbol should be placed after the diameter value, such as “such as Φ50 ±0.1 Ⓕ”.

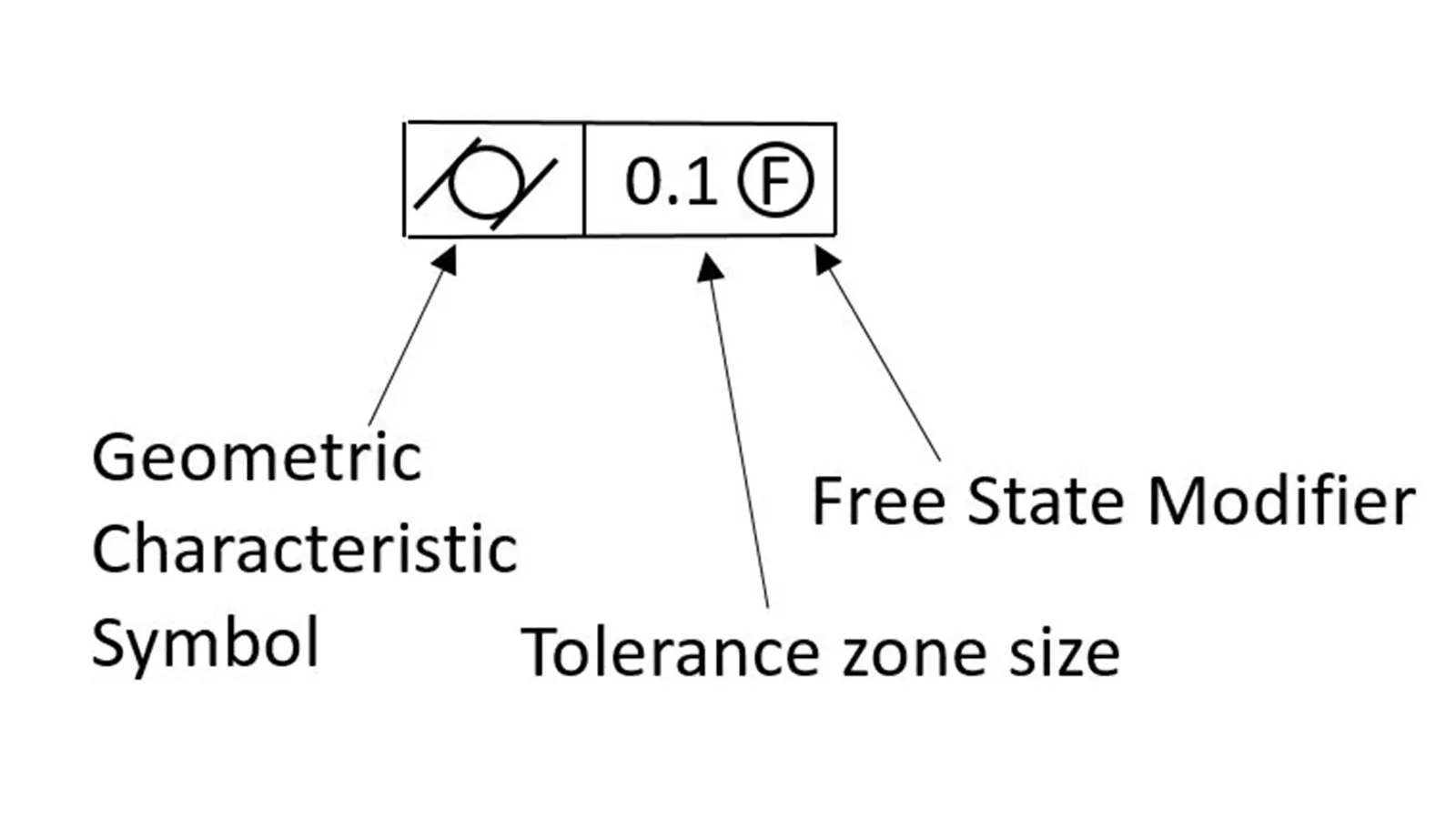

For geometric tolerances, the symbol must be placed below or beside the tolerance frame to indicate the requirement applies to the free state—e.g., the symbol for flatness free-state tolerance is marked under the flatness tolerance frame.
To convey the meaning of the free state symbol, drawings usually require annotations.
These annotations explain that the tolerance requirements indicated by the symbol are measured and evaluated when the parts are in a free state, free from external constraints. If there are specific measurement methods or conditions, they should also be noted.
For instance, in the technical requirements section of the drawing, it can state, “Size and shape tolerances marked with the free state symbol (F) are measured and evaluated in the free state after removing all clamping forces and external forces on the parts.”
Choosing to use free state symbols requires comprehensive consideration of material characteristics, parts structure and functional requirements.
This section will analyze the judgment logic of application scenarios from the three dimensions of high-elastic materials (such as aluminum alloy, high-molecular polymers), thin-walled / slender shaft structures, and precision assembly function requirements.
When parts are made of highly elastic, low-rigidity, or deformable materials, the free state symbol should be considered.
Lightweight alloys like aluminum and titanium, despite their low density and high strength, have weak rigidity and can elastically deform under cutting and clamping forces during machining.
Some polymers, being flexible, change shape notably when stressed.
For instance, in CNC milling of thin-walled aluminum alloy housings, omitting the free state symbol to control free-state tolerances means that after removing clamping, elastic recovery may cause the parts to exceed design tolerances, impairing assembly and performance.
The free state symbol is indispensable for special-structured parts such as thin-walled structures, slender shafts, and thin plates.
Take aircraft engine blades and receivers as examples. These components with thin-wall structures are highly susceptible to warping and deformation from clamping and cutting forces during machining.
Slender shafts, characterized by their high length-diameter ratio, are prone to bending during processing, while thin plates are liable to deform during both machining and handling.
When the free-state geometric accuracy of these parts impacts their functionality and assembly, free state symbols should be used to control tolerances during design.
When the function of a part requires it to have specific size and shape accuracy in the free state, the free state symbol must be used.
For example, in order to ensure the installation accuracy and optical performance of the lens, the optical lens bracket of precision instruments has strict requirements for geometric accuracy such as flatness and verticality in the free state; the thickness uniformity and flatness of the sealing gasket of automobile engines in the free state are directly related to the sealing performance and work reliability of the engine.
In such cases, marking tolerances with the free-state symbol can ensure that the parts meet the functional requirements in their free state.
Free-state symbols play an irreplaceable role in aerospace, automobile manufacturing, precision instruments and other fields.
It ensures performance by controlling deformation, sealing, and assembly accuracy. Flowcharts and annotation examples will illustrate its practical use.
In the aerospace industry, free state symbols are extensively applied in part processing.
Take aircraft wing skins usually made of thin-walled aluminum alloys as an example. They need assembly precision with wing frames and free-state shape accuracy for aerodynamic requirements.
Marking free-state tolerances can accurately control the skin’s rebound deformation after clamping removal, thus ensuring surface smoothness and shape precision.
Similarly, critical aircraft engine components like blades and casings rely on free state symbols to maintain free-state dimensional and shape accuracy, enhancing engine efficiency and reliability.
In automobile manufacturing, free state symbols play an important role in some key parts. For example, the thickness tolerance and flatness of the cylinder head gasket of a car engine in its free state directly affect the sealing and reliability of the engine.
In addition, some thin-walled coverings of the car body are easily deformed during stamping and processing. The use of free state symbols can accurately control their dimensional accuracy in the free state, ensuring the appearance quality and assembly accuracy of the car body.
When it comes to precision instrument manufacturing, the free-state symbol is essential for ensuring that the instruments achieve high accuracy and optimal performance.
For example, components like optical microscope barrels and stages have strict size and shape accuracy requirements.
The free-state roundness and straightness of the barrel impact the optical system’s coaxiality and imaging quality, while the stage’s free-state flatness determines sample placement horizontality and measurement accuracy.
Marking tolerances with free-state symbols ensures these components meet high-precision standards in their free state.
In CNC machining, free-state symbols must guide both programming and testing.
During programming, strategies like tool path planning (e.g., layered milling) and machining parameter adjustment (e.g., cutting depth control) help avoid deformation risks.
In testing, applications of coordinate measuring machines (CMMs), environmental controls (e.g., temperature/humidity), and data evaluation methods are critical to validate free-state tolerances.
In the CNC programming phase, the application of free-state symbols primarily focuses on meticulous tool path planning and precise parameter setting:
– Programmers must comprehensively assess potential part deformation risks arising from machining forces and optimize tool paths accordingly.
For example, adopting layered incremental milling strategies for thin-walled components to systematically minimize cutting force-induced distortion and ensure gradual material removal without compromising structural integrity.
– Reducing both the cutting depth and feed rate serves as a critical mitigation tactic, as this dual adjustment lowers dynamic cutting forces in real time, effectively preventing parts from exceeding the tolerance limits in the free state caused by the cumulative stress during high-load machining operations.
– Processing allowances must be strategically recalibrated in strict accordance with free-state tolerance requirements, incorporating post-release elastic recovery predictions to ensure that parts inherently achieve dimensional and form accuracy once fully relieved from clamping constraints and transitioning to their natural free state.
In the parts inspection phase, free-state symbols serve as a clear and standardized basis for evaluation:
– Inspectors are required to measure part dimensions and geometric shapes exclusively in their free state as specified by the symbol, ensuring no external constraints affect the results.
For components with intricate geometries—such as aerospace thin-walled structures or precision mechanical parts—specialized devices like coordinate measuring machines (CMMs), optical profilometers, or laser scanners can be strategically utilized to precisely acquire free-state geometric parameters with high accuracy.
– During the measurement process, environmental factors including temperature, humidity, and even air flow must be strictly regulated and monitored to ensure that the obtained results accurately reflect the true free-state tolerances without interference from external conditions.
– Additionally, inspectors must conduct a detailed analysis of measurement data against the specified free-state tolerance requirements, using statistical methods or comparative evaluations with digital models to systematically determine part qualification and ensure compliance with design standards.
In the GD&T (geometric dimensioning and tolerance) system, the free state symbol is an extremely critical component and occupies a pivotal position in the field of CNC processing.
It accurately defines the size and shape tolerance requirements of the part in the free state, and properly solves the limitations of traditional tolerance marking when dealing with special structural parts such as high elasticity and thin walls.
In actual application scenarios, free state symbols are widely used in many industries such as aerospace, automobile manufacturing, and precision instrument manufacturing, playing a key role in ensuring product quality and performance.
