What is Spherical Diameter in GD&T ?
By Lucas Lo | Updated: June 30, 2025
Table of Contents

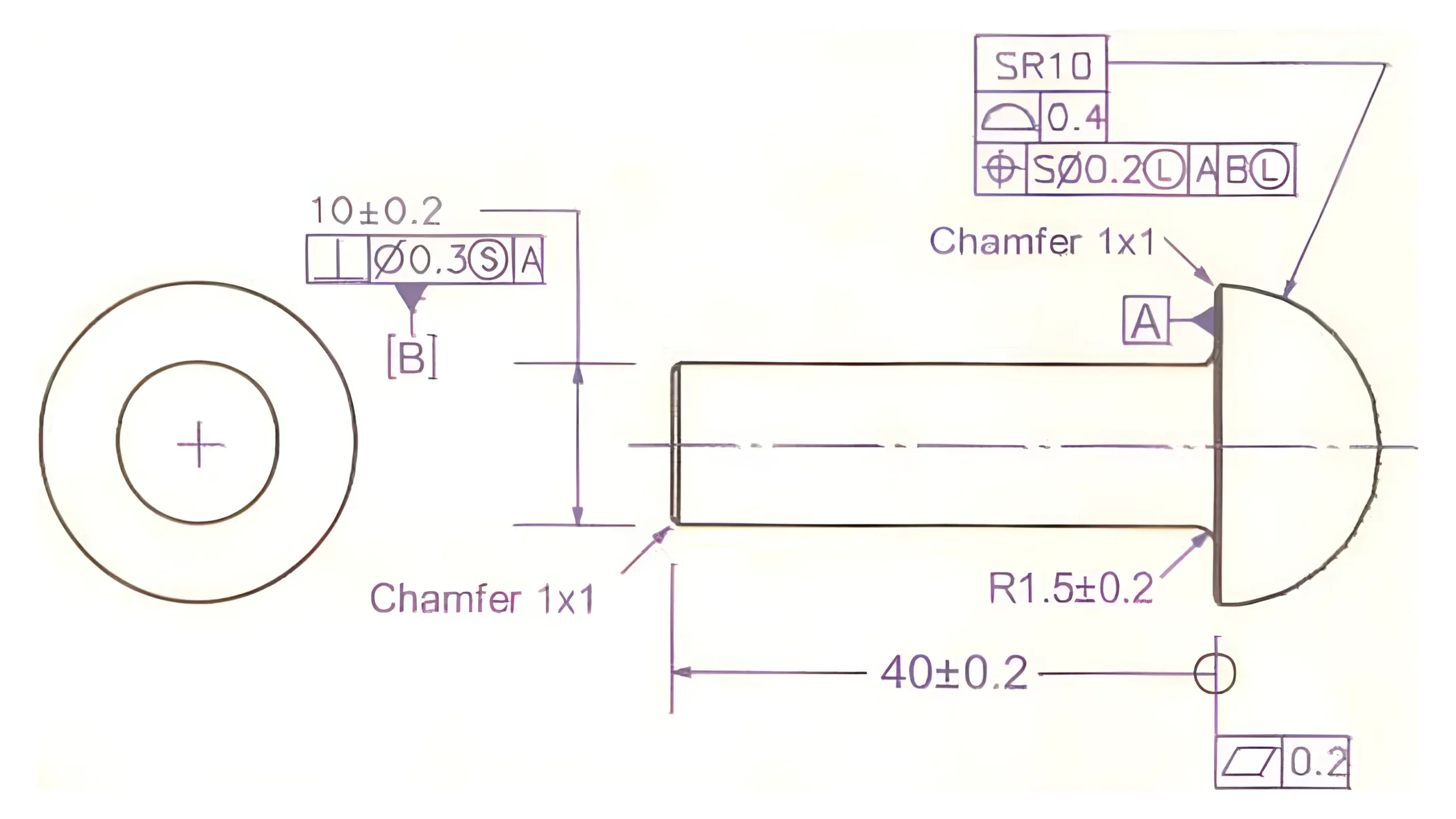

As a key geometric parameter for spherical features in the engineering field, Spherical Diameter is crucial for defining part dimensions and assembly accuracy.
This article elaborates on the definition, labeling rules, application scenarios, and related concepts of Spherical Diameter, helping to clarify its differences from other similar terms.
1. What is Spherical Diameter?
Spherical Diameter denotes the measurement of a line segment that passes through the sphere’s center and links two points on its surface.
As a key parameter defining a sphere’s overall dimension, its value doubles the spherical radius (D = 2R). In engineering, the symbol “S⌀” denotes this dimension, directly specifying the spatial magnitude of spherical entities like ball bearings and domes.
1.1. Detailed Explanation
Sphere: A three-dimensional geometric entity characterized by a perfectly round configuration, where every point on its outer surface maintains equal distance from a fixed central point.
Diameter: A line segment that passes through the sphere’s center and connects two surface points. It represents the maximum distance between any two internal points, thus defining the sphere’s overall size.
1.2. Relationship with Radius
The Spherical Diameter is twice the Radius. Given the radius, the diameter is computed by multiplying it by two; given the diameter, the radius is determined by dividing it by two.
1.3. Differences from Other Circles
Both circles and spheres have diameters.For a circle, the diameter represents a line segment linking two points on the circumference while traversing its center.
In contrast, the Spherical Diameter is the line segment that connects two surface points of a sphere and passes through its center.
2. How to Callout Spherical Diameter on Engineering Drawings?
In engineering, precise drawing labels are vital for conveying design ideas and ensuring smooth production. For spherical parts, correct diameter labeling is essential; incorrect notations can lead to manufacturing errors, assembly problems, and safety risks.
In the GD&T (Geometric Dimensioning and Tolerancing) system, S⌀ is the standard symbol used to label Spherical Diameter.
It is used exclusively for three-dimensional spheres to indicate the maximum straight-line distance through the center of the sphere, and is commonly used for spherical parts such as bearing balls, ball joints, spherical caps, and other structures.
In order to avoid confusion with the 2D circular diameter “⌀” or the spherical radius “SR”, the prefix S⌀ has been created separately to clearly characterize the dimensions of 3D spheres in drawings.
The drawing is clearly marked with “S⌀ 1.25” to explicitly denote that the sphere has a diameter of 1.25 millimeters, where the symbol “S⌀” functions as a prefix specified by the GD&T standard, exclusively used for dimensions related to spherical features.

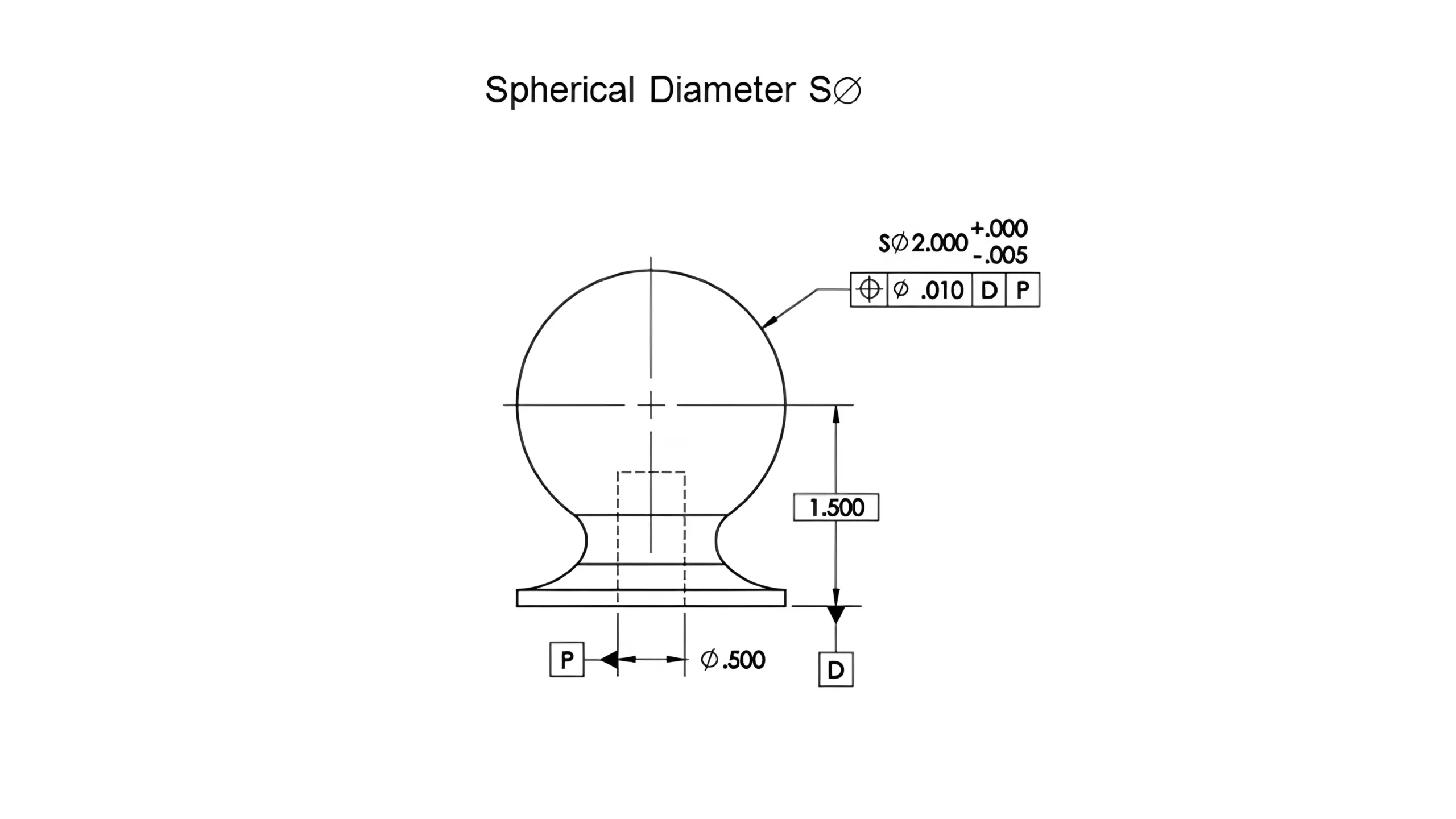

The drawing includes the annotation “Spherical Diameter” to clearly specify that this dimension refers to a spherical diameter, differentiating it from a standard circular dimension.

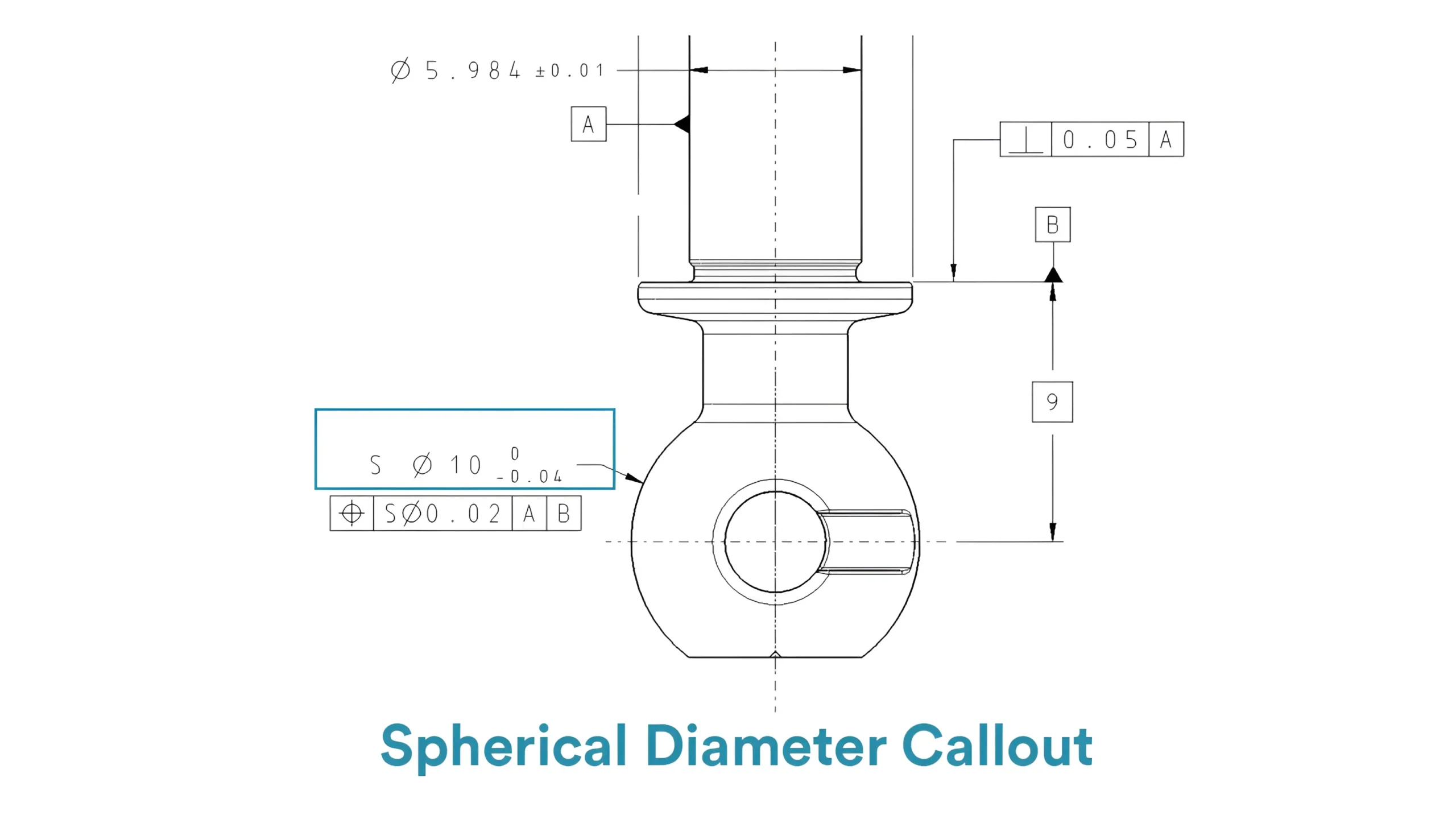

Below is Spherical Diameter Dimensioning with Datum and Tolerance Control
This type of labeling is a typical example of how S⌀ can be used in practical assembly scenarios for structures such as ball bearings, spherical connectors, and so on. The combined expression of S⌀ , tolerances, datum + and form control ensures that the part achieves the following during the manufacturing and assembly phases.
3. How to Measure Spherical Diameter in Machining?
Spherical Diameter measurement is the key to ensure product quality and performance. Currently, there are 5 commonly used measurement methods, each with its own advantages and application scenarios, as shown in the table below.
Method | Description | Recommended Applications |
Coordinate Measuring Machine (CMM) Measurement | Use a probe to measure the spherical surface at no less than 4-6 evenly distributed points. The software conducts automated spherical surface fitting and provides the sphere’s central coordinates and diameter as output.
| Suitable for high-precision requirements (μm level), complex spheres, or spheres for assembly. |
Ball Gauge/Ring Gauge Matching | Use tolerance-equipped ball gauges or limit gauges for pass/fail inspection. | Ideal for sorting batch small spheres (e.g., steel balls) or rapid verification. |
Micrometer (Outside Diameter Micrometer) | Directly measure the distance between the two endpoints of the sphere and calculate the average of measurements from multiple directions. It is recommended to install a spherical contact probe to improve measurement accuracy. | Applicable to spheres with larger diameters and good measurement surface contact. |
Laser Scanning or White Light Interferometer | Scan the spherical point cloud and use software to fit a sphere for diameter extraction. | Applicable to scenarios demanding high surface precision or non-contact operations.
|
Image Measurement System (Projection/Visual Measurement) | Capture the sphere contour through the image system and automatically identify the diameter, ensuring accurate focusing and clear images. | Suitable for measuring micro-spheres or glass/transparent spheres. |
4. What is the Distinction Between Spherical Diameter and Spherical Radius?
Although related, the two play different roles in engineering. This section compares the differences between them in terms of definition, labeling, and application.
4.1. Definitions
Spherical Diameter (S⌀): the bidirectional distance through the center of the ball, S⌀ = 2R, defines the overall size, e.g., S⌀100mm for a bowling ball.
Spherical Radius (SR): The distance from the ball’s center to its surface in one direction.
SR is defined as S⌀/2 and is used to define the curvature. For instance, an SR50mm Radius is applied to a bowling ball.
4.2. Labeling
Spherical Diameter: Prefix “S⌀”, e.g. S⌀20mm.
Spherical Radius: Prefix “SR”, e.g. SR10mm.
4.3. Applications
Spherical Diameter: Focuses on overall dimensions for tool selection, such as an 8mm drill bit for an S⌀8mm hole.
Spherical Radius: Focuses on curvature for design aesthetics or stress control, e.g., SR3mm rounded corners on a spherical handle for grip comfort.
5. What Other Concepts are Easily Confused with Spherical Diameter?
In addition to Spherical Radius, which is easily confused with Spherical Diameter, there are a number of concepts that are easily confused with Spherical Diameter, as explained below:
5.1. Circular Diameter (⌀)
Circular diameter is the diameter of a 2D circle, such as ⌀50mm for a flat washer, which is different from the Spherical Diameter of a 3D spherical surface.
The confusion arises because both use the symbol “⌀”, but “S⌀” must be added for spheres to avoid misunderstanding, such as ⌀50mm vs. S⌀50mm.
5.2. Effective Diameter (for Threads/Bearings)
Definition Difference: The effective diameter is the theoretical mating dimension of linear/cylindrical features such as threads/bearings, and is independent of the actual geometric size of the sphere (e.g., calculating the pitch diameter of a thread requires considering the thread angle and pitch deviation.)
Application Scenario: It is only applicable to the calculation of cylindrical surface mating accuracy, while the spherical diameter is used for the overall size control of 3D spheres. There are no overlapping application scenarios between the two.
Avoiding Confusion: In engineering, it is necessary to quickly distinguish by feature type (spherical vs. cylindrical) without delving into their calculation models.
6. Conclusion
As a core parameter in engineering manufacturing, Spherical Diameter achieves precise control through standardized labeling and machining processes, with wide applications in various fields. Correctly distinguishing easily confused concepts is the key to promoting the development of the precision industry.
