The Complete Guide to Knurling: Types, Uses, and Design Tips

Knurling is a critical machining process used to create patterned textures on cylindrical surfaces, enhancing grip, assembly performance, and aesthetic appeal.

This comprehensive guide covers the fundamentals of knurling, including its purposes, types, suitable materials, tool selection, process parameters, cost considerations, and design guidelines.

Readers will gain insights into the differences between form and cut knurling, how to select the appropriate pattern (straight, diagonal, or diamond), and how to optimize parameters like pitch, feed, and spindle speed for high-quality results.

Key Takeaways:

• Knurling improves grip, enables interference fits, and adds decorative appeal to parts across tools, machinery, electronics, medical devices, and sports equipment.
• Form knurling is efficient for soft, ductile materials like aluminum and brass, while cut knurling is ideal for hard metals requiring high accuracy and superior surface finish.
• Following DIN 82 or ISO 13444, proper pitch, diameter multiples, and tolerance control help prevent defects like ghosting, misalignment, or excessive burrs.

1. What is Knurling?

Knurling is an essential machining process that creates a patterned, three-dimensional texture—typically straight, diagonal, or diamond patterns—on the cylindrical surface of a workpiece. This process serves specific functional and aesthetic purposes.

Essentially, knurling transforms a smooth surface into one with defined friction characteristics. It is widely applied to mechanical parts that require manual operation or tight, secure fitting.

2. Why Do We Use Knurling?

Knurling primarily serves three critical purposes:

2.1. Enhanced Grip and Handling

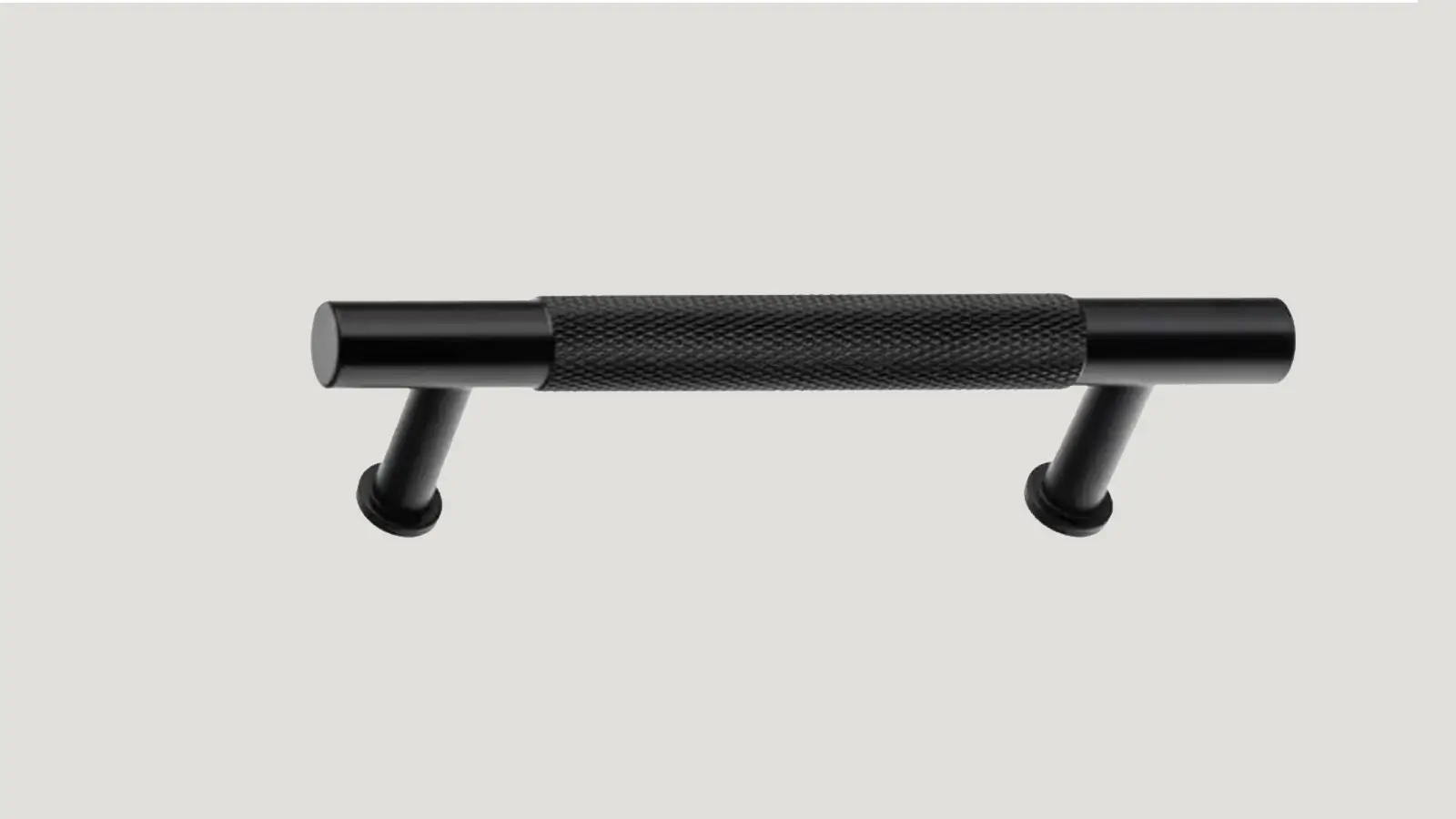

This is the most common use of knurling. Applying a knurl pattern to knobs, handles, or tool shafts (like screwdrivers or surgical instruments) significantly increases the friction between the hand and the part. This prevents slipping, boosting both safety and operational efficiency.

2.2. Secure Fastening and Assembly

Knurling is used to create an interference fit between a shaft and a hole. When a knurled shaft is pressed into an inner bore, the raised texture bites into the bore material, forming a low-cost, high-strength friction lock. This is commonly seen in the assembly of motor and generator shafts.

2.3. Aesthetic Value

On high-end products such as camera lens focusing rings or precision knobs, knurling is also an important surface feature used for decoration. It signals high-quality craftsmanship and detailed engineering.

3. Classifications of Knurling

Knurling is primarily classified based on the process used and the resulting pattern.

3.1. Knurling Classified by Process

There are two main processes for creating knurls:

Learn more: Knurling Process: Form Knurling vs. Cut Knurling

3.2. Knurling Classified by Pattern Type

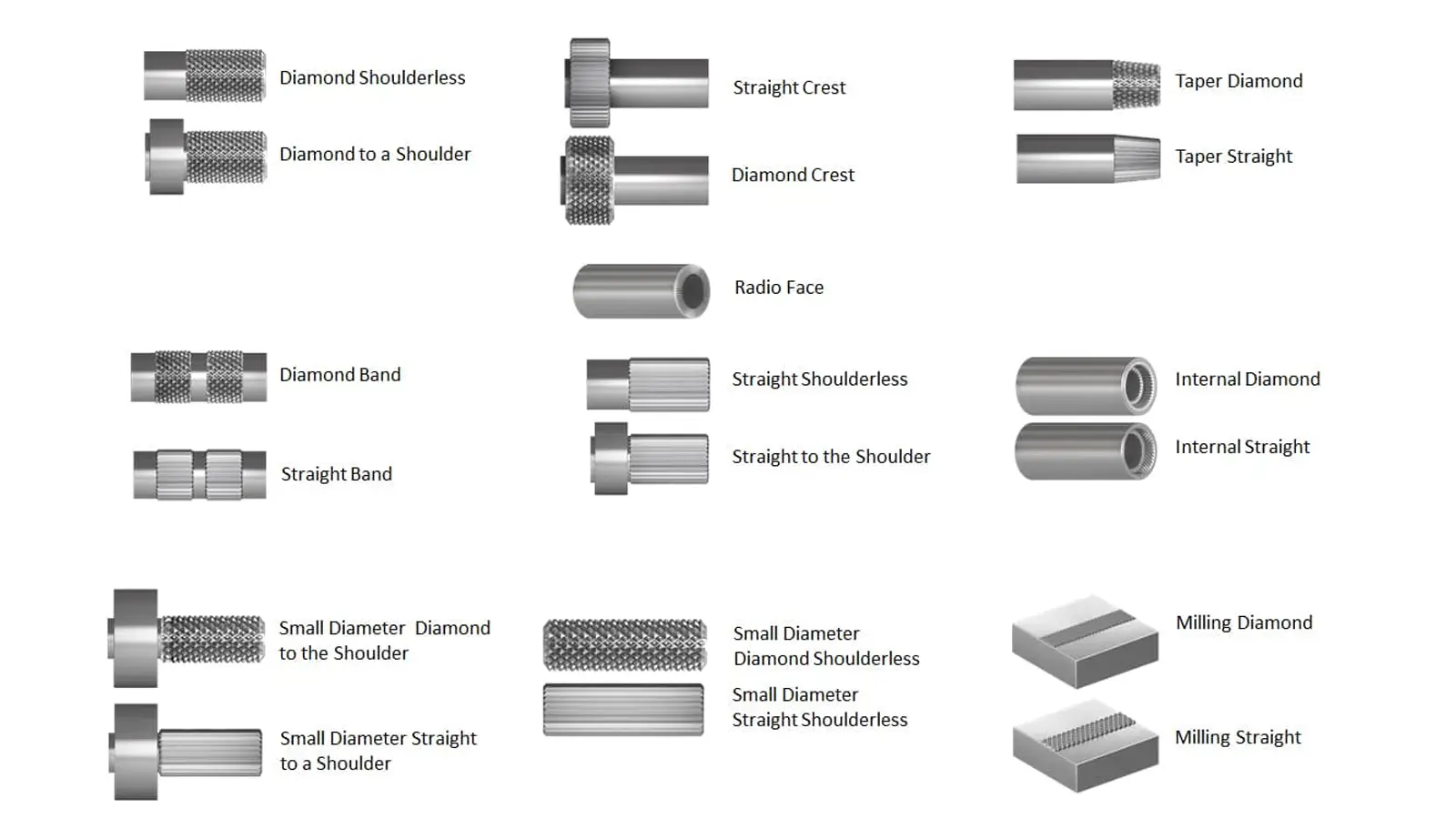

 Knurl patterns are divided into Straight, Diagonal, and Diamond:

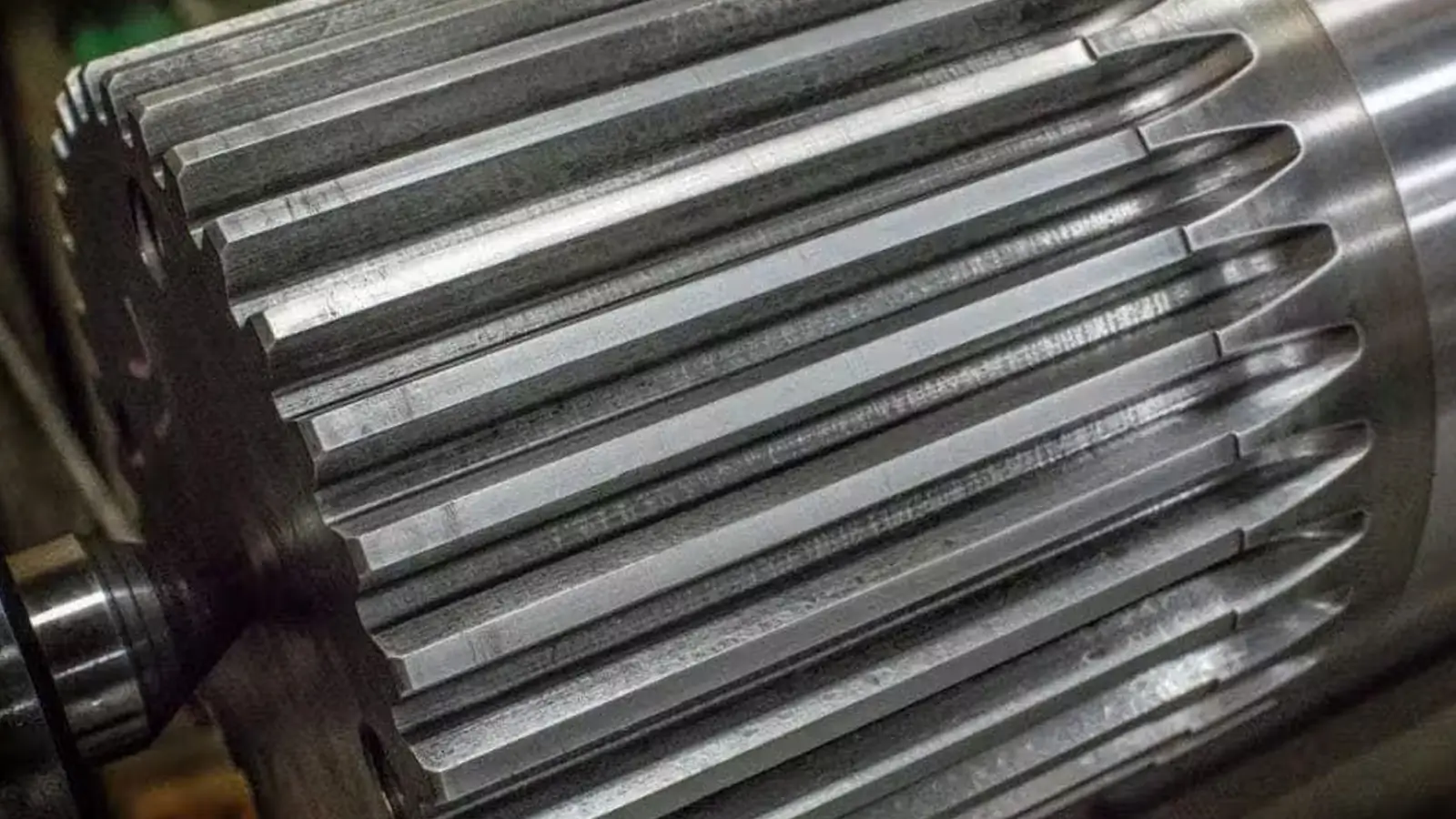

• Straight Knurl:

Consists of a series of parallel linear lines. It is primarily used for parts requiring unidirectional slip resistance or linear adjustment, such as micrometer sleeves or linear guides.

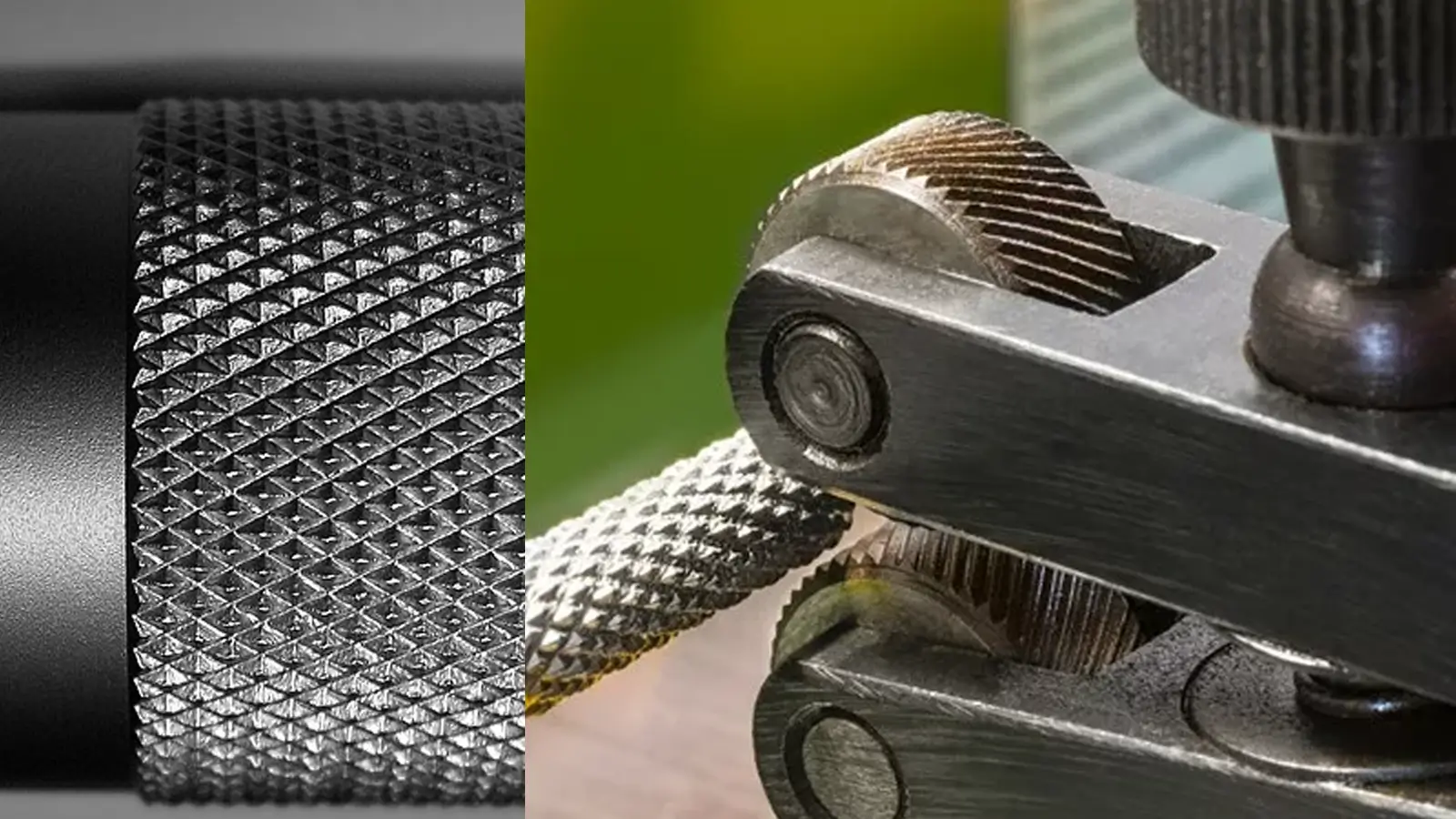

• Diamond Knurl (Net Pattern):

Formed by two sets of diagonal lines crossing (usually at 90 degrees) to create a diamond grid. This is the most common and versatile type, providing all-around slip resistance for tool handles, adjustment knobs, and bottle caps.

•  Diagonal Knurl:

Consists of parallel lines angled at a specific degree (e.g., 30 or 45). It offers both grip and aesthetic appeal, often used on premium flashlights or camera focus rings for a dynamic look.

Learn more: Types of Knurling Patterns

4. Typical Materials for Knurling

Knurling works best with materials that have good ductility (plasticity), as these can form stable knurl patterns without cracking when stressed or cut.

Selecting the right material is key to ensuring quality, functionality, and appearance.

• Aluminum and Aluminum Alloys (e.g., 6061, 7075):

Lightweight, easy to machine, and highly ductile. Aluminum is one of the most common materials for knurling.

It takes Form Knurling well, resulting in clean textures without cracking. Used extensively for electronic enclosures, instrument knobs, and handles.

• Brass and Copper:

Known for their excellent ductility and conductivity, making them highly suitable for knurling. They form stable, non-slip textures while maintaining their natural luster.

Often used in decorative items, high-demand industrial components, and high-end consumer products.

• Low Carbon Steel (e.g., AISI 1018, 1045):

Moderately hard, able to withstand machining pressure while maintaining accuracy, making it an economical choice.

It accepts both Form and Cut Knurling.

Typical uses include mechanical shafts and fasteners requiring enhanced grip or friction locking.

• Bronze:

Due to its good wear resistance and stability, bronze is also suitable.

Knurling can enhance the friction locking performance of bearing bushes and gear shafts, extending their service life.

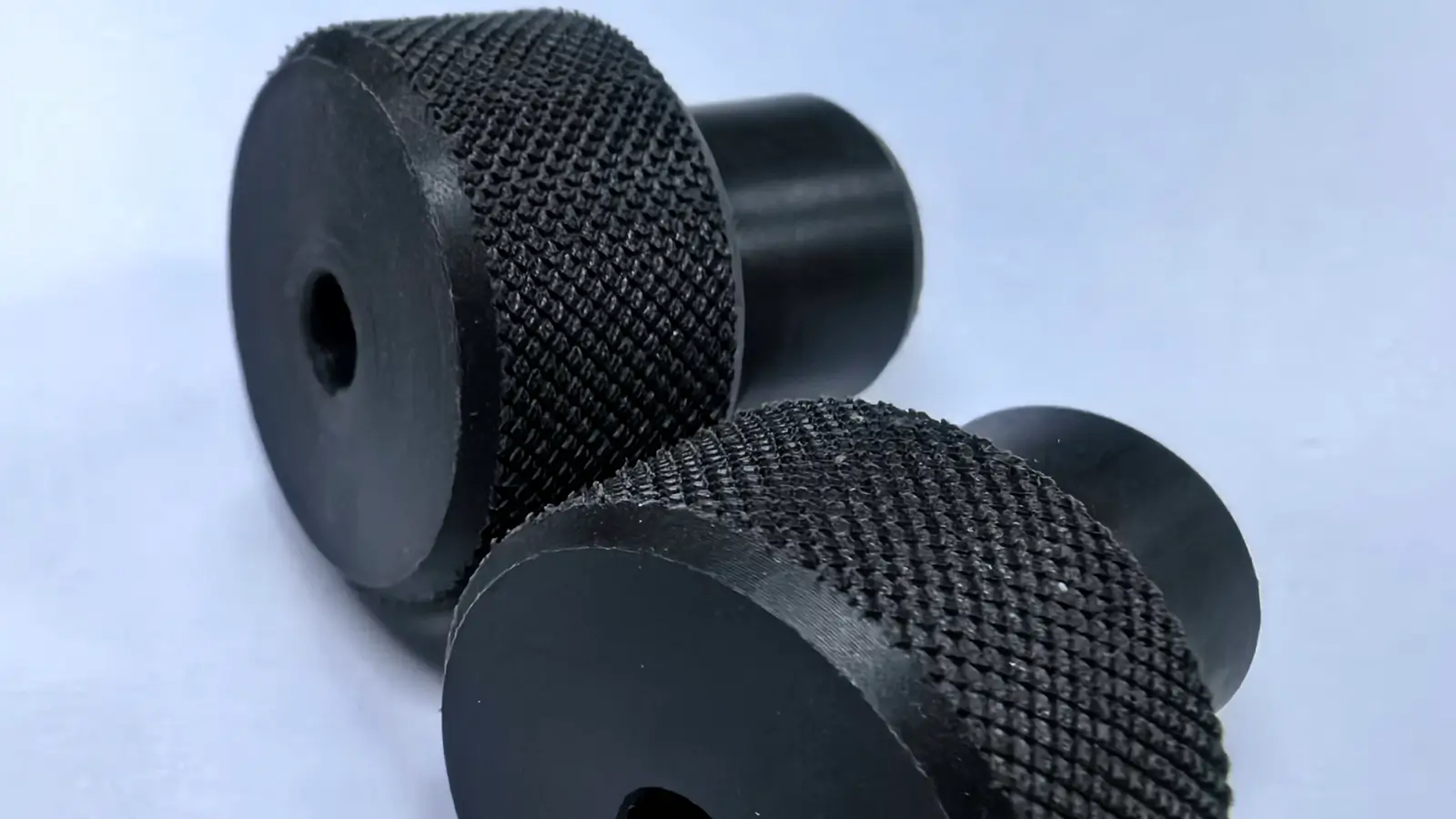

• Plastics (e.g., POM, Nylon):

Soft and elastic materials like POM and Nylon can be knurled. Form Knurling creates uniform patterns while maintaining a smooth touch.

Common applications include handles, knobs, and decorative components that require both grip and aesthetic appeal.

Note: For harder materials (such as stainless steel and titanium alloys), it is highly recommended to use Cut Knurling tools.

This prevents material cracking, excessive tool wear, and ensures superior texture accuracy and surface quality compared to pressure-based methods.

Check more How Material Properties Affect Knurling.

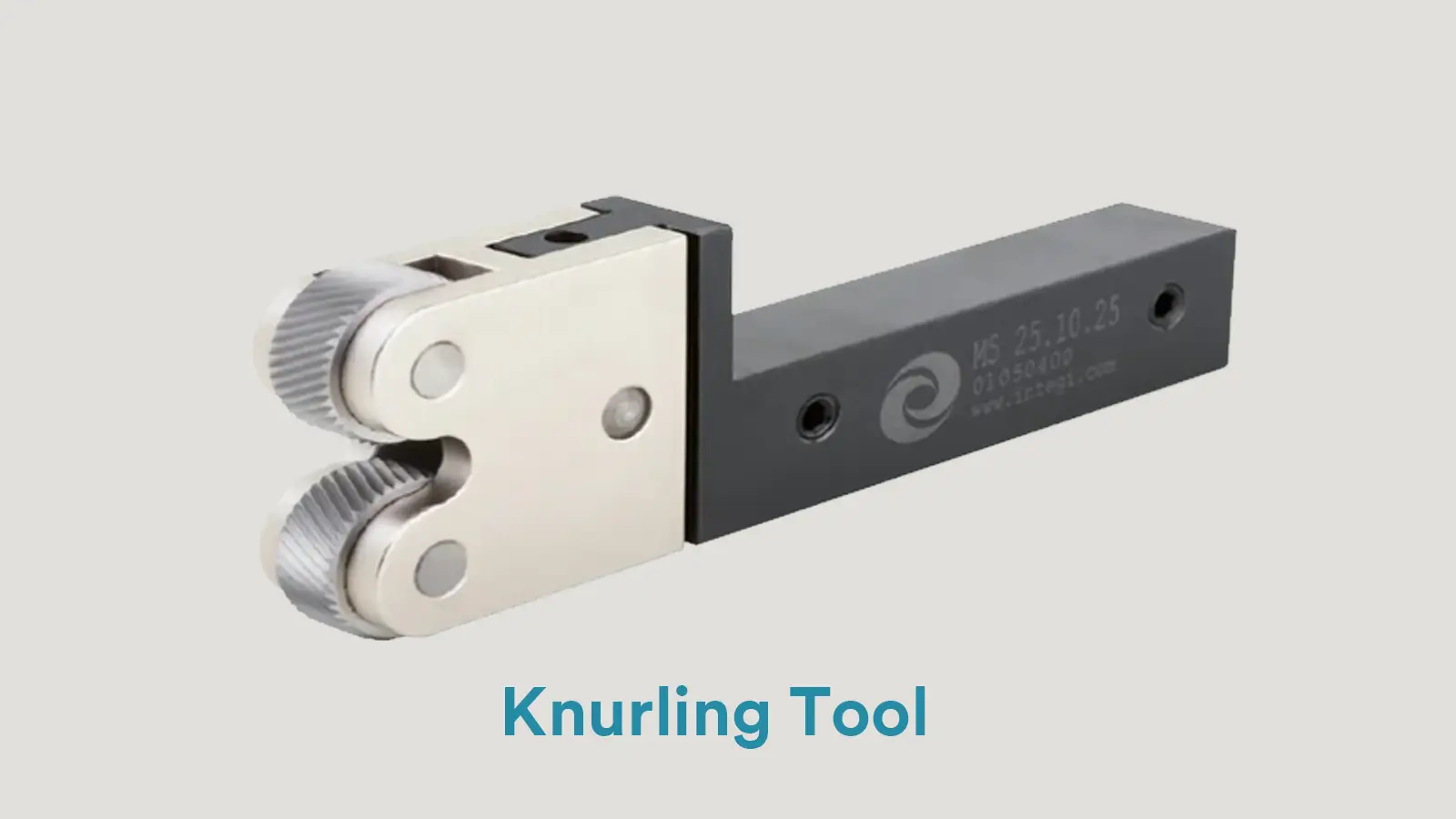

5. Types of Knurling Tools

Knurling tools are crucial for achieving high-quality textures. They are generally categorized based on their mechanism:

Knurling tools are usually made from high-performance materials to ensure durability and wear resistance, including High-Speed Steel (HSS), M42 steel, and Carbide.

To further enhance tool life and stability, surface coatings like HSS (Titanium Nitride) or TiAlN (Titanium Aluminum Nitride) are often applied.

For more information about Knurling Tools, visit our blog:

Types of Knurling Tools and How to Choose the Right One

6. Key Knurling Process Parameters

The quality and functional effect of knurling depend on selecting the correct process parameters. These are grouped into parameters that define the pattern specifications and those that control the machining process.

6.1. Parameters Determining Knurling Pattern

These parameters define the aesthetics, feel, and grip of the knurl:

• Pitch / TPI:

The theoretical distance between adjacent teeth, this is the most important knurl parameter.

Representation: TPI (Teeth Per Inch, e.g., 16 TPI), or P (Pitch in mm, e.g. P0.8mm).

Coarse Pitch (8-16 TPl): Large, deep teeth provide maximum grip but feel rougher.

Suitable for heavy-duty tools and valve handwheels.

Fine Pitch (20-40 TPl): Small, dense teeth feel smoother and look finer, but offerslightly less aggressive grip. Suitable for precision instruments and high-end consumerproducts.

Diameter Match (Rule of Thumb): The workpiece diameter (in inches) xTPI shouldapproximately equal an integer to ensure a complete pattern circumference and avoid”ghosting” or “tracking errors.”

• Tooth Angle:

Determines the pattern type. 90° is used for diamond and straight knurls (highstrength, general purpose); 30° or 45° is used for diagonal knurls (enhanced aesthetics).

• Tooth Profile:

Tooth Profile affects feel and grip.

Standard Profile: Sharp crests provide maximum bite and grip.

Radius/Domed Profile: Rounded crests offer a comfortable, smooth feel and premiumappearance, often used for parts handled directly.

6.2. Process Control Parameters

These parameters are set during machining and directly influence quality, tool life, and success rate:

• Surface Speed:

The linear speed of the workpiece surface during rotation.

Form Knurling: Generally low (50-150 SFM / 15-45m/min) to ensure sufficient plastic flow and prevent the tool wheel from slipping.

Cut Knurling: Speed varies by material; soft materials can require higher speeds, while hard materials (such as stainless steel) require lower speeds to minimize tool wear.

• Feed Rate:

The axial movement speed of the knurling wheel along the workpiece.

Form Knurling: The feed rate can be set approximately equal to the pitch. For example,a 16 TPI pitch (≈ 0.0625 inches) might use a feed rate of about 0.060 IPR.

Cut Knurling: Requires a constant, continuous feed to ensure smooth cutting and goodsurface quality. lt is crucial not to stop the feed when machining work-hardeningmaterials.

• Depth of Cut:

The depth the knurling wheel is pressed or cut into the workpiece.

Form Knurling: Depth is indirectly controlled by pressure to form a full, clear pattern.

Cut Knurling: Typically involves a single pass to achieve full tooth depth, minimizing multiple cuts that can cause tool wear or work hardening.

• Cooling & Lubrication:

Essential for protecting the tool, improving surface quality, and preventing material adhesion.

Form Knurling: Oil or soluble cutting fluid is recommended to reduce friction and prevent material buildup on the wheel.

Cut Knurling: High-performance coolant is mandatory, especially when machining stainless steel and titanium, to maintain tool life and quality.

Knurling Key Parameter Summary Table

7. The Cost of Knurling

The overall cost of knurling is influenced by several factors, including the chosen process, tooling, machine requirements, material characteristics, and required precision.

7.1. Process Selection

7.2. Tools and Machines

High-performance Cut Knurling tools (such as self-centering tools) are generally more expensive. For Form Knurling, if the machine’s rigidity is insufficient to handle the high pressure required, the overall cost may increase due to the need for machine or tooling upgrades.

7.3. Material and Precision Requirements

When machining hard materials (e.g., stainless steel, titanium) or when strict diameter tolerances are required, Cut Knurling must typically be used. This necessity, coupled with stricter quality control measures, will naturally increase the unit manufacturing cost.

8. Where Is Knurling Used?

Beyond conventional hand tools, electronic devices, and basic assembly, knurling plays a critical role in the following specialized sectors:

8.1. Industrial and Mechanical Applications

• Valves and Control Levers:

Knurling is applied to manual control knobs for gas, liquid, or vacuum systems, faucet handles, and adjustment rods on industrial machinery.

Its function is to ensure operators can quickly and accurately open, close, or adjust the valve even when wearing gloves or when surfaces are wet or oily.

• Hydraulic/Pneumatic Fittings:

Quick connectors, the outer rings of hose fittings, and some custom sealing nuts feature knurling.

This provides extra friction, allowing technicians to hand-tighten or loosen them for quick installation and maintenance.

• Molds and Fixtures:

Knurling is used on components for quick-adjust jigs, the heads of clamping bolts, or the ends of locating pins. It acts as a friction-enhanced locating element or a surface for quick manual locking.

• Gauging and Measuring Tools:

Beyond micrometers and calipers, knurling is found on the fine-adjustment knobs of height gauges and the locking nuts for dial indicator stands.

This provides the necessary high friction and tactile feel for precision instrument micro-adjustments.

8.2. Electronic and Electrical Applications

• Connectors and Cables:

Knurling covers the shells of high-end audio/video connectors (like BNC or RCA heads) and the coupling nuts on military or aerospace plugs.

It allows users to easily plug, unplug, and tighten connectors in dense or cramped wiring spaces, ensuring reliable contact.

• Musical Instrument Components:

Knurling is used on electric guitar volume/tone knobs, tuner shafts, and professional microphone detachable couplings.

This non-slip surface ensures that the artist can precisely control volume and tone during a performance.

8.3. Ergonomics and Safety

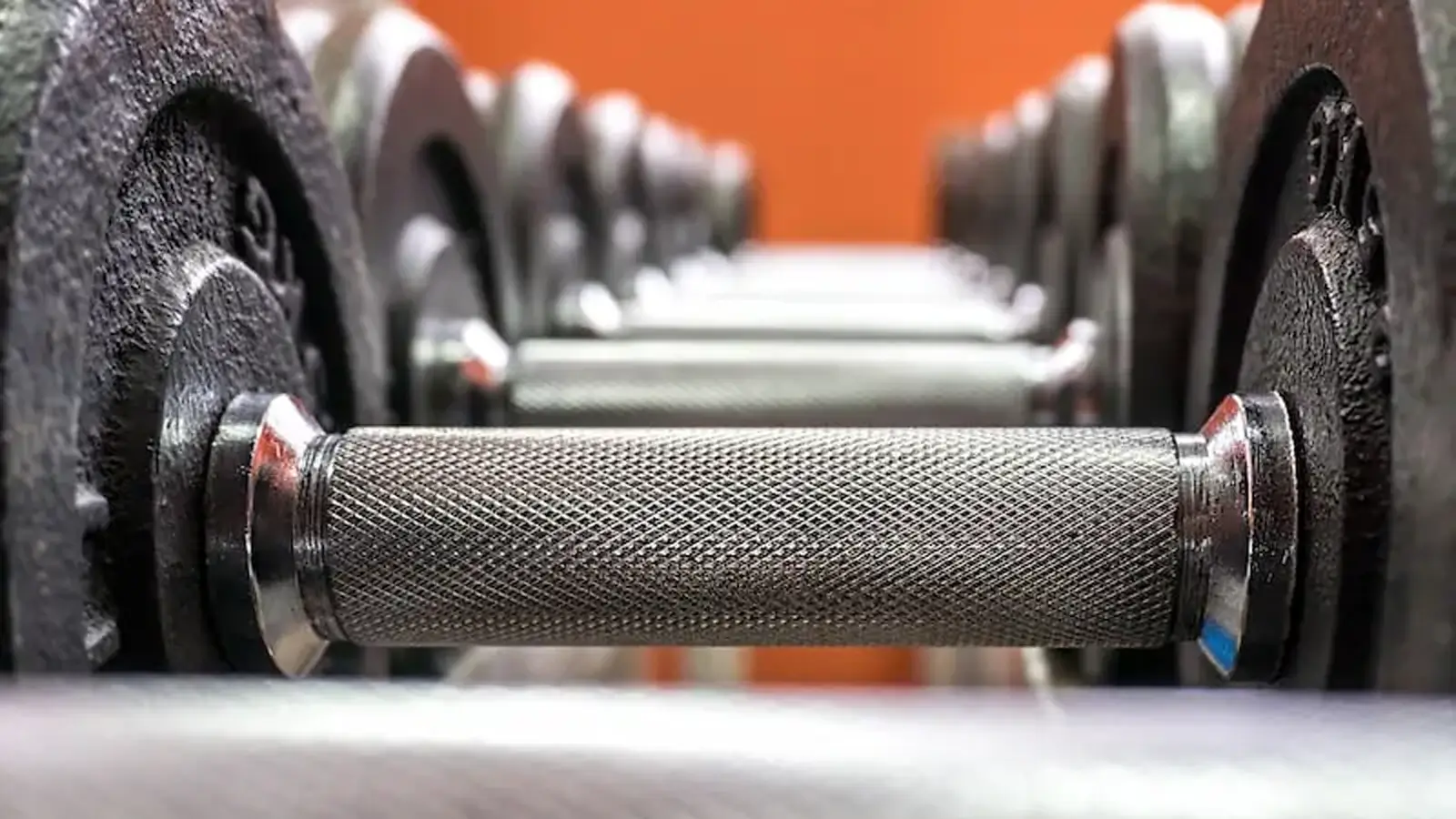

• Sports and Fitness Equipment:

Knurling is the classic application for dumbbell and barbell grip bars, as well as the adjustment pins on fitness machines.

Its function is to provide extreme slip resistance, preventing equipment from slipping and causing injury.

• Medical and Assistive Devices:

Knurling is applied to the height adjustment locks on crutches and walkers, and the gripping sections of some syringes or sampling tools. This ensures a reliable grip in medical environments where hygiene and precise operation are critical.

8.4. Expansion of Fastening and Assembly

• Insert Nuts for Plastic:

Knurled brass or bronze nuts are implanted into plastic casings via heat staking or ultrasonic welding.

The knurl pattern acts as a fixed structure, effectively preventing the nut from rotating or pulling out of the plastic, creating a high-strength thread.

• Press-Fit Dowel Pins:

In some designs, knurled pins are permanently pressed into metal or plastic holes, replacing keys or adhesives.

The knurl texture provides mechanical bite, guaranteeing resistance against both pull-out and rotation.

9. Surface Finish for Knurled Parts

The surface finish of knurled parts is understood in two ways: the microscopic roughness (Ra/Rz) of the texture itself and the final surface treatment (Post-Knurling Finish}) applied afterwards.

9.1. Texture Roughness (Surface Roughness)

The inherent roughness of the knurl texture directly impacts the part’s gripping performance and durability.

• Impact of Form Knurling:

Since form knurling relies on the plastic deformation of the material to create the pattern, the surfaces of the tooth crests are typically smoother, resulting in a lower Ra value.

However, the depth and sharpness of the final tooth profile may be less precise than with cut knurling.

• Impact of Cut Knurling (Machining):

Cut knurling uses a sharp edge to remove material.

If the cutting parameters are set incorrectly (e.g., feed rate is too slow or depth is too large), the tooth crests may experience tearing, burrs, or work hardening, leading to elevated localized roughness.

• Design Consideration:

The primary goal of knurling is to provide a reliable grip, so its roughness is generally higher than the part’s mating surfaces.

For example, a knurl on a knob or handle should achieve an Rz value of 10 u m or more to ensure effective gripping force.

9.2. Post-Knurling Finish and Surface Treatment

Many knurled parts require further treatment after knurling to enhance corrosion resistance, wear resistance, or aesthetic appeal. Common post-knurling finishing methods include:

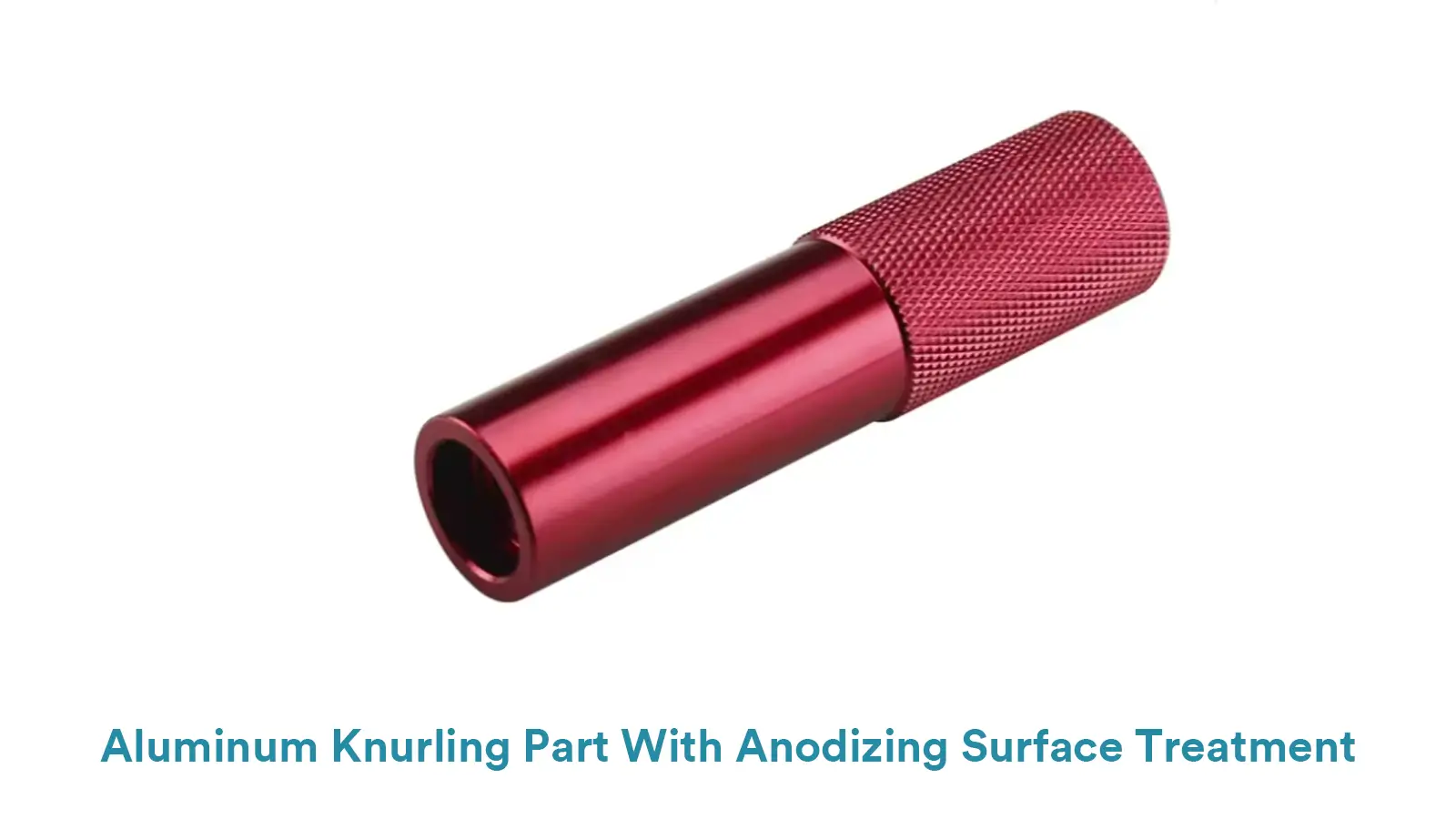

• Anodizing: Typically used for aluminum and its alloys to boost corrosion resistance and add decorative color effects.
• Plating (Chrome / Nickel): Used to enhance wear resistance and luster, commonly applied to tool handles and decorative components.
• Black Oxide / Passivation: Used to improve corrosion resistance, often applied to steel and stainless steel parts, respectively.

9.3. Quality Control Considerations

During the production of knurled parts, controlling the surface finish goes beyond simple visual inspection; strict checks are necessary for the following:

• Burr Inspection:

The edges and crests of the knurled teeth must be free of significant burrs or flash, as these compromise tactile comfort and operating safety.

Particular attention should be paid to chip evacuation and deburring when using cut knurling.

• Pattern Integrity:

A profile projector or microscope should be used to inspect the knurl texture, ensuring the depth and tooth profile meet design specifications.

Defects such as “Ghosting” (overlapping or misaligned patterns) or incomplete tooth formation must be avoided to ensure the knurl is both functional and aesthetically sound.

10. Knurling Quality Inspection and Standards

The quality of knurled parts affects not only grip performance but also assembly precision and aesthetics.

Knurling inspection typically involves three key aspects: reference standards, dimensional control, and visual/tactile evaluation.

10.1. Knurling International Standards

Knurling design and inspection usually refer to the following standards:

• DIN 82 (German Industrial Standard)

DIN 82 is the most widely used knurling standard globally. It defines basic knurl types and key dimensional parameters:

Types: RAA (Straight), RBL/RBR (Helical), RKE/RGV (Diamond Pattern)

Key Parameters: Pitch or module

The standard requires that symbols are clearly indicated on design drawings to ensure manufacturers and inspectors correctly understand and implement the design intent.

• ISO 13444 (International Standard)

ISO 13444 provides international guidance for knurl design, dimensioning, and measurement methods.

Although less frequently used than DIN 82, it is valuable for cross-border collaboration and exported parts.

10.2. Surface Roughness and Depth Control

The texture roughness and depth are critical functional indicators for knurled parts. Professional measurement tools are used to ensure accuracy:

• Knurl Depth:

Measured from peak to valley, ensuring the texture reaches the designed depth. In form knurling, depth affects grip and radial precision. Common tools: pointed depth gauges, profile projectors.

• Surface Roughness (Ra / Rz):

Even though knurling creates a rough surface, the micro-roughness of the peaks must be controlled. Excessive roughness can impair hand feel or cause tearing in cut knurling. Surface roughness meters or qualitative evaluation ensure consistent texture without burrs.

• Diameter Control:

Especially critical for form knurling. Final knurled diameter is measured using high-precision calipers or micrometers to verify pre-machined diameter and compensate for material expansion during knurling.

10.3. Visual Appearance and Tactile Evaluation

Besides precise dimension measurement, visual and tactile inspection ensures both functionality and aesthetics:

• Visual Inspection:

Check the knurl pattern for completeness and uniformity. Pay attention to:

• Tracking Errors / Ghosting:

Misaligned or overlapping patterns due to wheel-workpiece speed mismatch.

• Incomplete Pattern:

Starting or ending texture not fully formed or inconsistent in depth.

• Severe Burrs:

Sharp edges or flying debris can affect grip and safety.

• Tactile Evaluation:

Inspectors feel the knurled area to assess grip adequacy, comfort, and the absence of sharp burrs. While subjective, tactile assessment is crucial for ergonomic performance.

11. Design Guidelines and Tolerances for Knurled Parts

Designing knurled parts requires balancing functionality, manufacturability, and tolerance control to ensure parts are both practical and visually appealing.

11.1. Knurling Design Guidelines

11.2. Tolerances for Knurled Parts

Knurled area tolerances mainly involve diameter and concentricity, chosen according to the intended function and knurling method.

A. Diameter Tolerance

B. Form & Position Tolerances

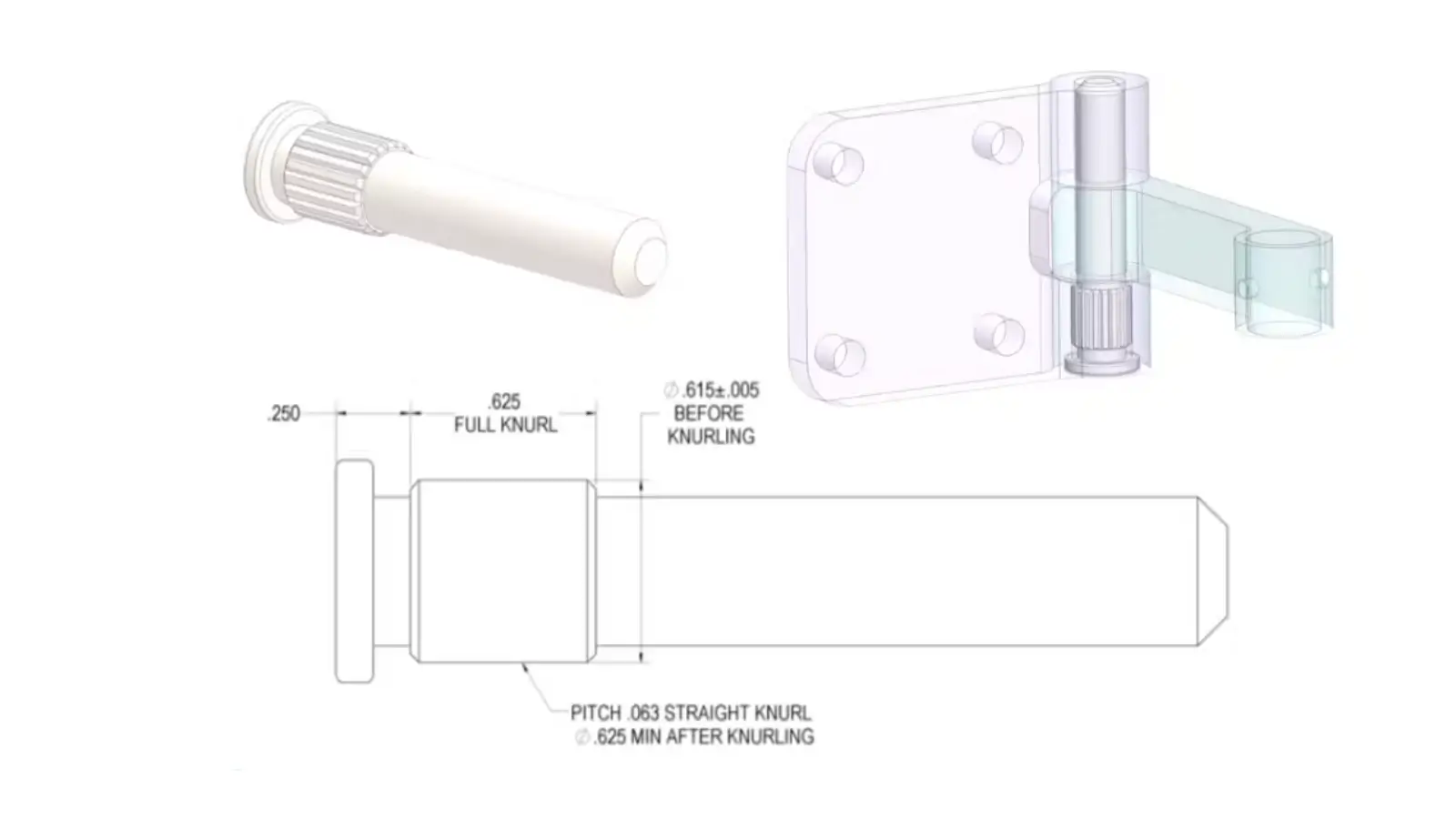

Drawings must clearly indicate knurl type (per DIN 82 or ISO standard), module/pitch, final diameter tolerance, coaxiality, and burr requirements.

12. Common Knurling Issues and Solutions

Here is a systematic guide to diagnosing common knurling problems, practical solutions, and methods to improve surface quality.

12.1. Common Issues, Causes, and Solutions

12.2. How to Improve Knurling Surface Quality

Achieving a high-quality knurled surface is a systematic process that involves selecting the appropriate process, optimizing parameters, and performing secondary finishing.

• Preferred Process & Parameter Optimization

Process Choice:

For applications requiring high surface quality and precision, cut knurling is generally preferred because it can provide superior surface finish compared to form knurling.

Parameter Optimization:

Select appropriate feed rate and spindle speed based on the material, and ensure sufficient high-performance coolant is used.

• Secondary Finishing (Surface Refinement)

Secondary operations are key to enhancing the final appearance and feel of knurled parts:

Deburring:

Almost always required after form knurling. Methods include vibratory finishing, tumble polishing, wire brushing, or manual scraping to remove burrs from peaks and edges, ensuring safety and comfort.

Light Polishing:

For decorative parts, a soft polishing wheel can be used to gently polish the peaks for a smooth, shiny finish, taking care not to distort the knurl pattern.

Regardless of whether form or cut knurling is used, sharp tools, optimized parameters, and effective cooling are the three pillars of achieving high-quality knurled surface finishes.

13. Summary

Knurling adds functional and decorative textures to smooth surfaces, improving grip, enabling secure fits, and enhancing appearance. The two main methods—form and cut knurling—are chosen based on material, precision, and production needs.

This guide covers suitable materials, tools, process parameters, post-processing (deburring, polishing), design guidelines, and standards (DIN 82, ISO 13444) to prevent defects.

Applications range from hand tools and machinery to electronics, medical devices, and sports equipment. By following best practices, manufacturers can produce knurled parts with consistent texture, precise dimensions, and high-quality surfaces.

14. FAQ about Knurling

Q1. What materials are suitable for knurling?

Most metals can be knurled, but medium-hard materials like aluminum, brass, stainless steel, and mild steel work best.

Very soft materials (e.g., pure copper) may deform, while extremely hard ones (e.g., hardened steel) can wear down the knurling tool quickly.

Q2: Can knurling patterns be customized?

Yes. We can customize the pattern type (straight, diamond, etc.), pitch, depth, and angle based on your requirements.

If you provide a sample or drawing, we can replicate the exact pattern.

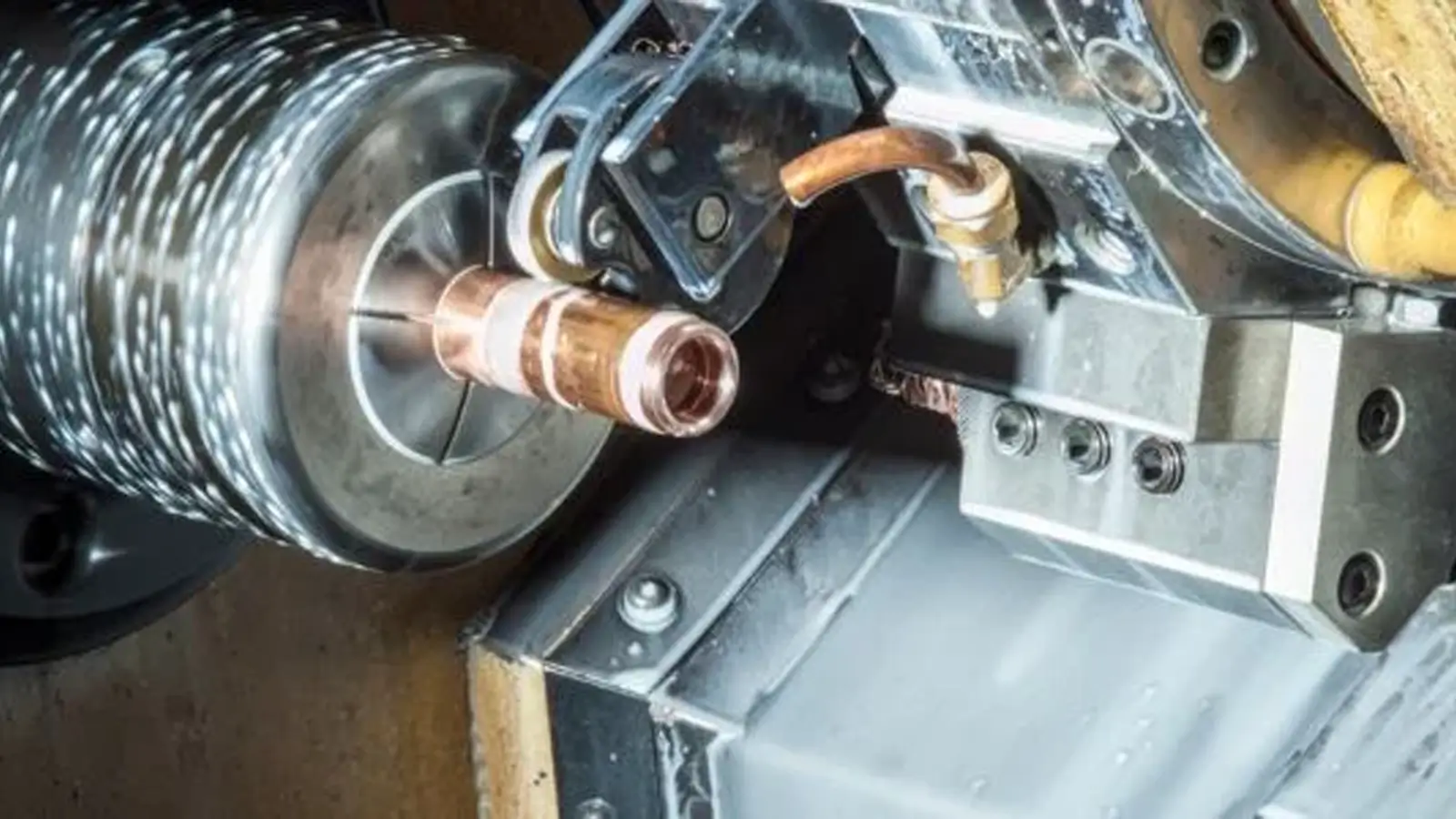

Q3: What’s the difference between CNC knurling and traditional knurling?

CNC knurling offers higher precision, more consistent texture, and better repeatability, ideal for large-scale production.

Traditional manual knurling is slower and less consistent.
For high-quality industrial components, CNC knurling is the superior choice.

Check more about: CNC Knurling vs Conventional Knurling: Key Differences, Features, and How to Choose

Q4: How do I specify knurling on a drawing?

A standard knurling note includes:

• Pattern type (e.g., Diamond)

• Pitch (e.g., 1.0 mm or 30 TPI)

• Angle (e.g., 30°)

• Knurled area dimension

Example: KNURL, DIAMOND, 1.0 PITCH × 30°, LENGTH 20mm

Q5: I need to add an anti-slip texture to my new product handle. Which knurling process should I choose?

This mainly depends on your production volume, material, and precision requirements.

If you are creating prototypes or small batch production (within a few hundred pieces) and the material is soft metals like aluminum or brass, traditional form knurling is a cost-effective and efficient choice, offering fast speed and low cost.

For large batch production (thousands of pieces), harder materials (like stainless steel), or when precise fitting with other components is required, CNC cut knurling is the better option, ensuring every piece is identical and free of burrs.

Q6: Why did my previous knurled parts have burrs and felt rough? How can this be avoided?

Burrs are typically caused by the inherent nature of the form knurling process or tool wear. This is a common issue. To avoid it, we can take the following measures:

• Process Optimization: For parts where feel and appearance are critical, we recommend using CNC cut knurling, which prevents burrs caused by material displacement at the source.

• Add Post-Processing: If form knurling must be used, we will add a deburring step after machining, using vibratory tumbling or manual polishing to ensure smooth, non-abrasive edges.

• Ensure Tool Sharpness: We strictly adhere to tool inspection and replacement protocols to ensure sharp knurling wheels are always used.

Q7: My part is made of plastic. Can it be knurled? Will it crack easily?

Yes, absolutely! Many plastics (like Nylon, POM) are suitable for knurling. Our solution is:

• Use Low-Pressure Process: We use optimized form knurling with minimal pressure to create the texture without causing cracking or deformation.

• Control Heat: Plastics are susceptible to melting from heat, so we use low RPM and ample cooling to prevent friction heat from damaging the part.

• Conduct Sample Testing First: Before mass production, we will produce samples using your plastic material to ensure the texture effect and strength meet your expectations.

Q8: I need to press a knurled shaft into a mating hole to create a secure connection. What should I consider in the design?

This is a classic press-fit (interference fit) application. To ensure connection strength, focus on these design aspects:

• Clearly Specify the Final Diameter: The drawing must clearly indicate the final diameter after knurling and its tolerance. Our engineers will use this dimension to precisely calculate the interference for the press-fit.

• Recommend Cut Knurling: For this application, we strongly recommend CNC cut knurling. It provides precise control over the final diameter with minimal variation, ensuring consistent holding force for every part.

• Provide Relief Areas: It’s advisable to leave a 0.5-1mm smooth area (relief groove) at both ends of the knurled section. This prevents material from being displaced and forming raised edges at the ends, which can interfere with assembly.

Q9: Are there materials unsuitable for knurling? Can my stainless steel parts be knurled?

Yes, your stainless steel parts absolutely can be knurled, but they require a specialized approach.

Materials like 304 stainless steel are very hard and prone to work hardening (they get harder as we machine them).

Trying to squeeze them (Form Knurling) often results in tool failure or an unclear pattern.

We must use a precise, slicing action with specialized tools and parameters to aggressively cut the pattern.

This ensures the knurl is clear, deep, and won’t crack, guaranteeing a durable and functional texture for your high-strength component.

Related blog:

• The Complete Guide to Knurling: Types, Uses, and Design Tips
• Types of Knurling Tools and How to Choose the Right One
• CNC Knurling vs Conventional Knurling: Key Differences, Features, and How to Choose
• How Material Properties Affect Knurling: Choosing Between Form and Cut Knurling
• Types of Knurling Patterns and How to Choose the Right Knurling Type
• Knurling Process: Form Knurling vs. Cut Knurling
